Advantage

Multi-material direct molding

1 to 2 kinds of material gradient forming, multi-material ordered composite forming, support customized production

Flexible scraper system

Flexible and replaceable various powder spreading scraper systems

Fresh air protection system

Lejia fresh air system efficient operation, double filter protection to ensure more stable forming

Fully closed vacuum chamber

Vacuum auxiliary oxygen content is low, to ensure that the metal is not oxidized

Parameter

• Device name/model


  laser


  Scanning system


  Scanning speed


  Molding cavity size


  The thickness of the layered


  Feeding way


  Molding material


  The operating system


  The control software


  The data format


  Power supply and power consumption


  External dimensions of equipment


  The environment temperature

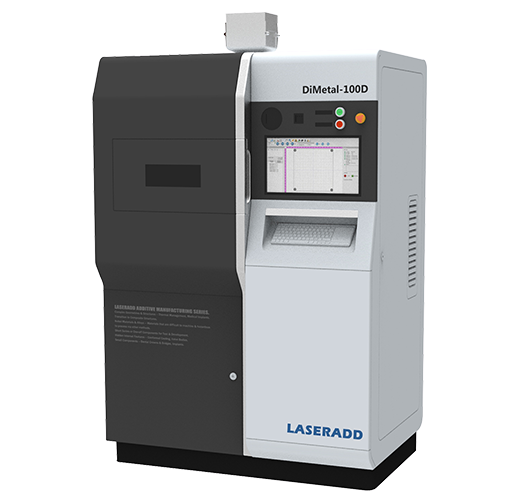

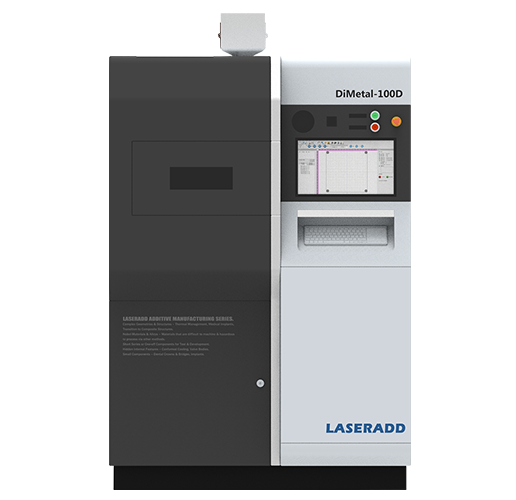

• Dimetal-100d Multi-material metal 3D printer


  Infrared Ytterbium doped Fiber Laser, 200W (optional 500W)


  High precision scanning galvanometer


  Top 7 m/s


  100mm*100mm*100mm


  0.02 mm to 0.1 mm


  Double cylinder one-way powder supply


  Stainless steel, cobalt chromium alloy, titanium alloy, die steel, precious metals and other metal powder


  Windows 7 64 bits


  Independent development of control and path planning software system


  STL file or other convertible format


  220V 50/60Hz 32A


  1200mm (L) *800mm (W) *1700 (H)


  Operating temperature 15-26℃

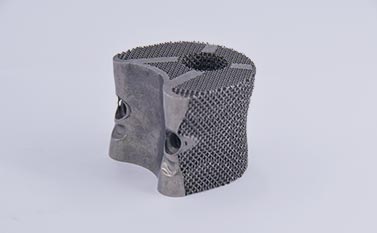

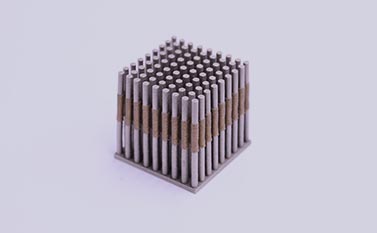

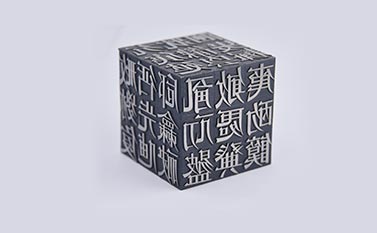

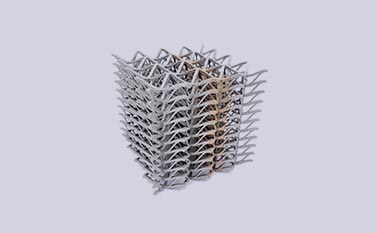

Case

B4

B3

B2

B1

Recommend equipment

DiMetal-650

Scanning speed up to 34m/s
Molding cavity size 625mm*625mm*1100mm
Layer thickness 0.02mm to 0.2mm

Application: aerospace, mold industry, automobile industry and other large size parts are widely used in the industry.

Learn More

DiMetal-50

Scanning speed: maximum 7m/s
Cavity size: 50mm*50mm*50mm
Layer thickness: 0.02mm-0.1mm

Application: jewelry, dentistry, scientific research and education industries

Learn More

DiMetal-50E

Molding size φ70x50
Dimensions 720mm*810mm*1500mm

Metal 3D printer for vocational education and training

Learn More

DiMetal-100E

Maximum scanning speed of 7.8m/s
Molding cavity size 100mm*100mm*100mm
Layer thickness 0.02mm to 0.2mm

Application: Dentistry, orthopedics, scientific research, education

Learn More

DiMetal-100H

Maximum scanning speed of 7.8m/s
Molding cavity size 100mm*100mm*100mm
Layer thickness 0.02mm to 0.2mm

Application: Dentistry, orthopedics, jewelry, scientific research and education

Learn More

DiMetal-150

Maximum scanning speed of 7.8m/s
Forming cavity size 150mm*150mm*150mm
Layer thickness 0.02mm to 0.2mm

Application: Dentistry, orthopedics, mold, jewelry, scientific research and education

Learn More
