Dimetal-300 is a multi-material metal 3D printing equipment developed by Lejia, which can form 1-4 kinds of materials at one time, realizing the one-time processing and forming of multi-material parts, meeting the diversified requirements of material properties of complex parts, and improving the material design space of parts in complex use scenarios and working conditions. Applied in electric power, industrial mold, basic scientific research, aerospace, education and multi-material experiment, etc.
Device name/model
laser
Scanning system
Scanning speed
Molding cavity size
The thickness of the layered
Feeding way
Molding material
The operating system
The control software
The data format
Power supply and power consumption
External dimensions of equipment
The environment temperature

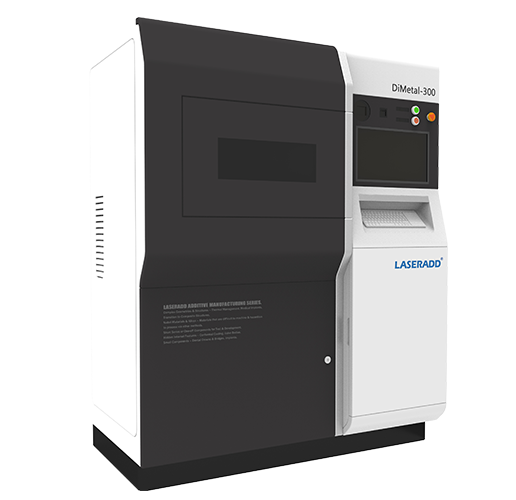

DiMetal-300 Multi-material metal 3D printer
Infrared Ytterbium doped fiber laser, 500W (other power lasers are supported)
High precision scanning galvanometer
Top 7.8 m/s
250mm*250mm*300mm
0.02 mm to 0.2 mm
Double cylinder one-way powder supply
Stainless steel, cobalt chromium alloy, titanium alloy, high temperature alloy, die steel and other metal powder
Windows 7 64 bits
Independent development of control and path planning software system
STL file or other convertible format
380V 50 Hz 8KW
1600mm (L) *1100mm (W) *2600 (H)
Operating temperature 15-30℃
