Advantage

High efficiency, high precision

High efficiency, high precision additive manufacturing and field repair of large structural parts

Free size

500mm×500mm×400mm Large molding size (expandable)

A lower cost

The forming cost is lower, the efficiency is higher, and the milling compound can meet the requirements of higher dimensional accuracy

flexibility

The double 6-axis linkage system of robot and positioner makes the production of parts more flexible

Parameter

• Device name/model


  Molding size


  Forming method


  Molding material


  The operating system


  The control software


  The data format


  Power supply and power consumption


  External dimensions of equipment


  The environment temperature

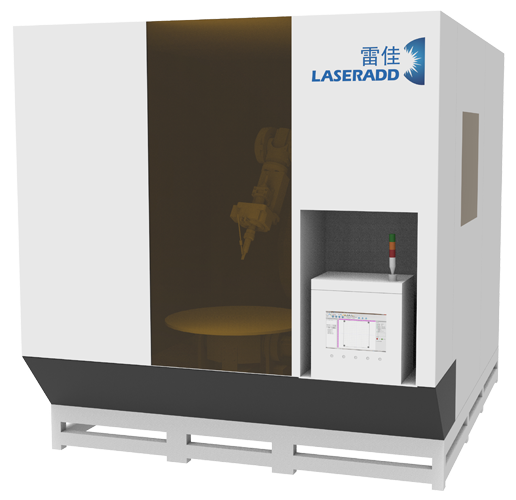

• LASERADD-PR-500


  500 mm * 500 mm * 400 mm


  Coaxial wire feeding, powder feeding, cutting


  Stainless steel, cobalt chromium alloy, titanium alloy, high temperature alloy, die steel and other metal powder


  Windows 7 64 bits


  Independent development of control and path planning software system


  STL file or other convertible format


  380V 50/60Hz 45KW


  3000mm (L) *3300mm (W) *3600 (H)


  Operating temperature 15-26℃

Recommend equipment

LASERADD-DED-500H

4 axis CNC machine tool for reducing material platform
Molding size 400mm×500mm×200mm
Feeding powder in forming way

Nuclear energy, ocean engineering manufacturing, aerospace, education and material experiments, etc

Learn More

LASERADD-DED-500Pro

5 axis CNC machine tool for reducing material platform
Molding size 400mm×500mm×400mm
Forming way feeding powder, cutting

Nuclear energy, ocean engineering manufacturing, aerospace, education and material experiments, etc

Learn More
